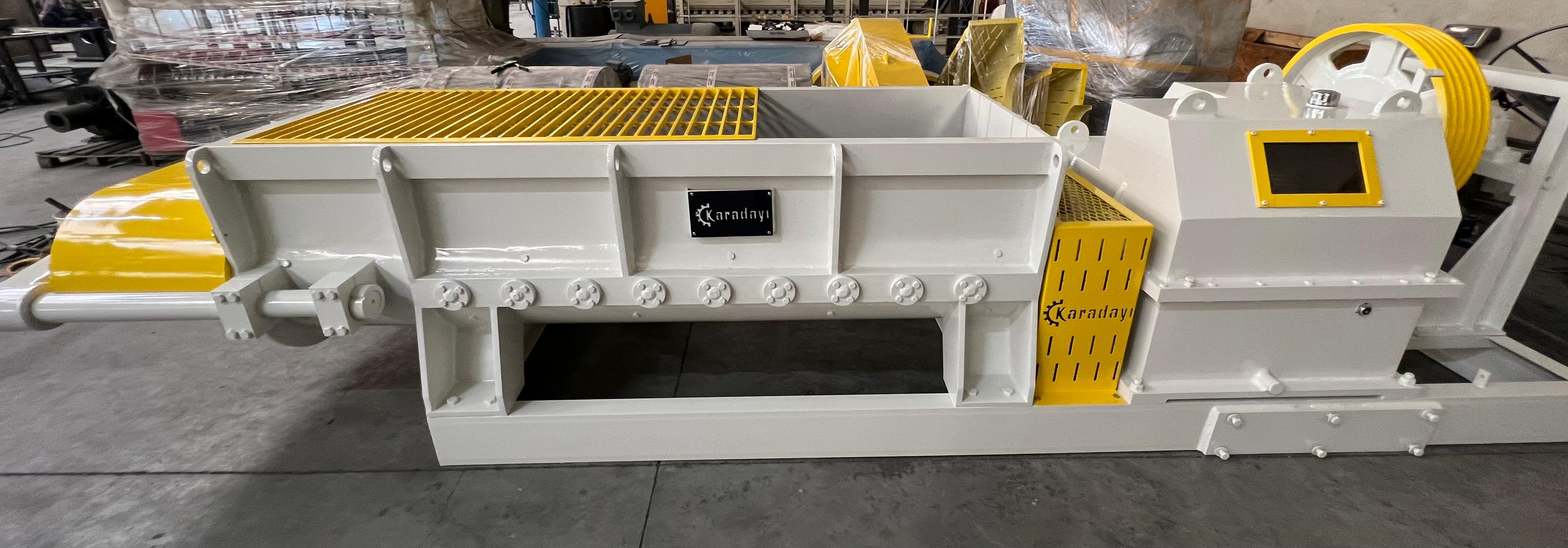

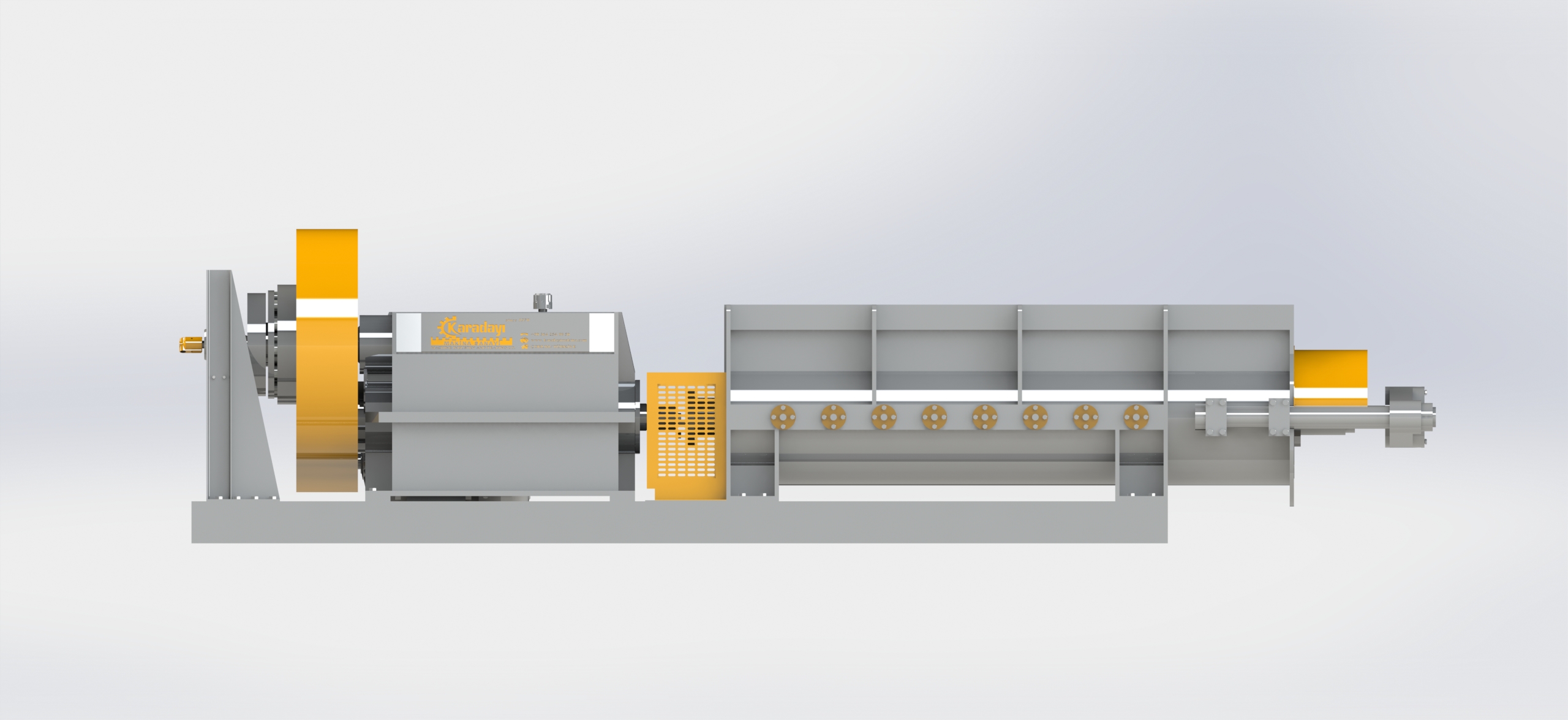

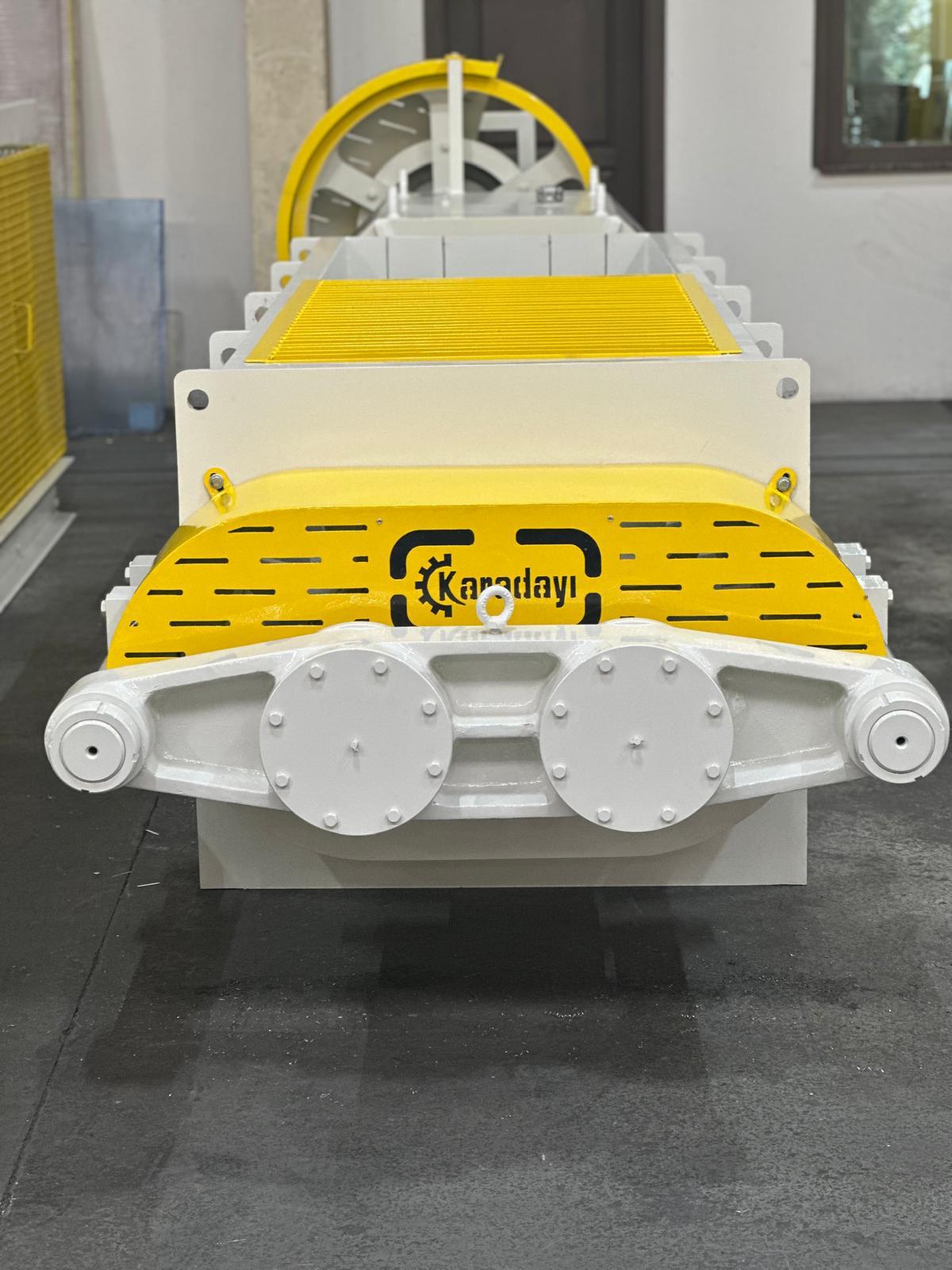

Open Double-Shaft Mixers
FXAK/AK

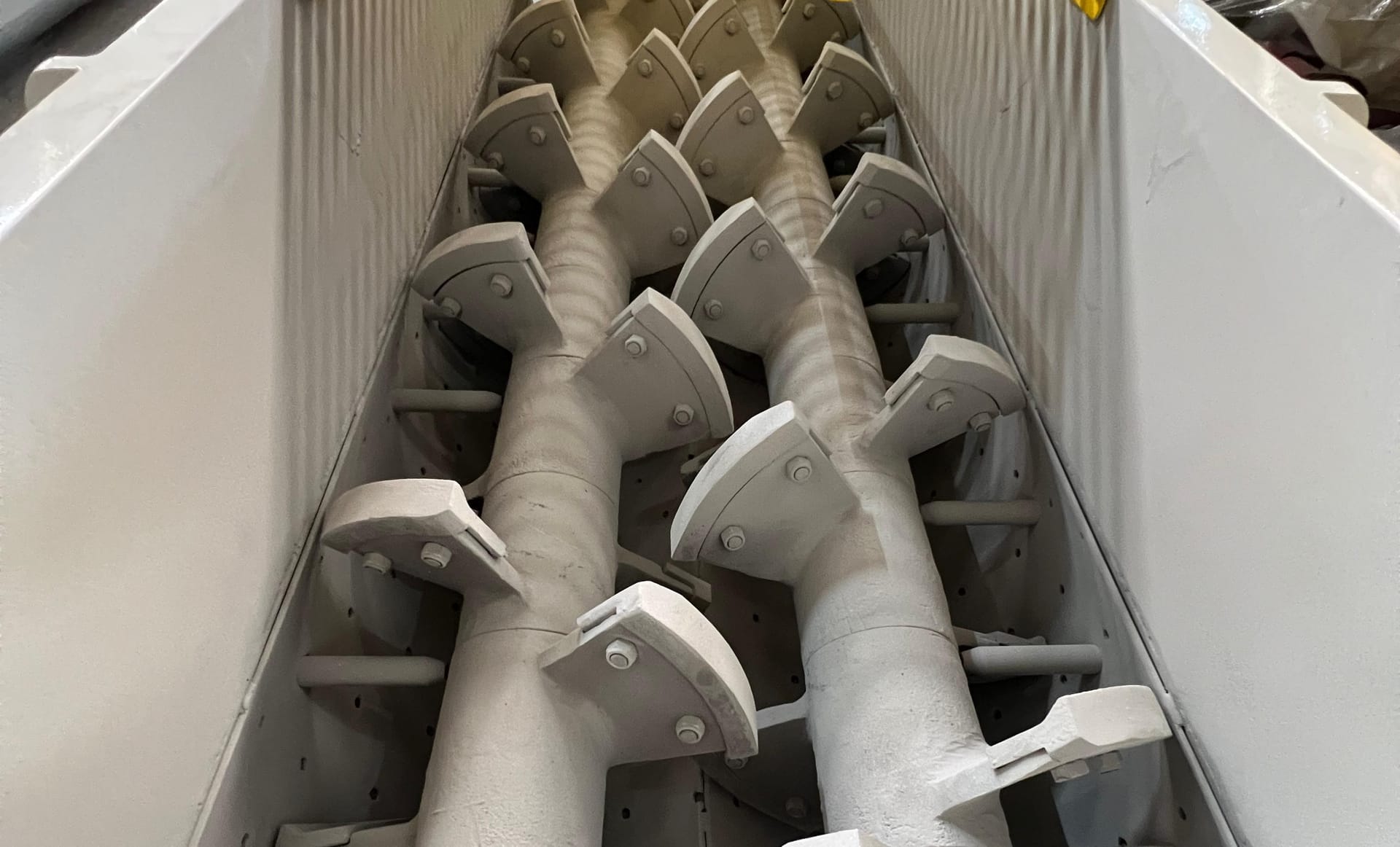

Open Double-Shaft Mixers are essential equipment concerning the preparation process to ensure proper homogeneity amongst different types of clays and additives, as well as addition of water. Its great efficiency is based on the design and distribution of knives that increase mixing effect by taking and pressing clay between the knives of both shafts.
Category
Mixing | Homogenization
Quality Guarantee
Certified production
360° Interactive View
Available
Technical Specifications
Detailed table
360° View
0%
Loading 360° View...
Technical Specifications
| Type | Mixing Trough Width (mm) | Mixing Trough Length (mm) | Volumetric Yield (m³/h compact) | Capacity (t/h wet) | Motor Power (kW) |
|---|---|---|---|---|---|
| FXAK 450 | 820 | 2420 | 25-35 | 40-60 | 55-75 |
| AK 500 | 895 | 2440 | 28-42 | 45-68 | 55-75 |
| AK 550 | 965 | 2500 | 30-45 | 48-75 | 73-90 |
| FXAK 600 | 1100 | 2700 | 32-56 | 52-90 | 90-110 |
