Hammer Mill
The Hammer Mill is a high-performance machine used for crushing hard and large-sized raw materials to the desired fineness. With its specially designed hammer system and powerful rotor structure, it efficiently crushes clay, limestone and similar materials.
Variable speed control adapts to different material types.

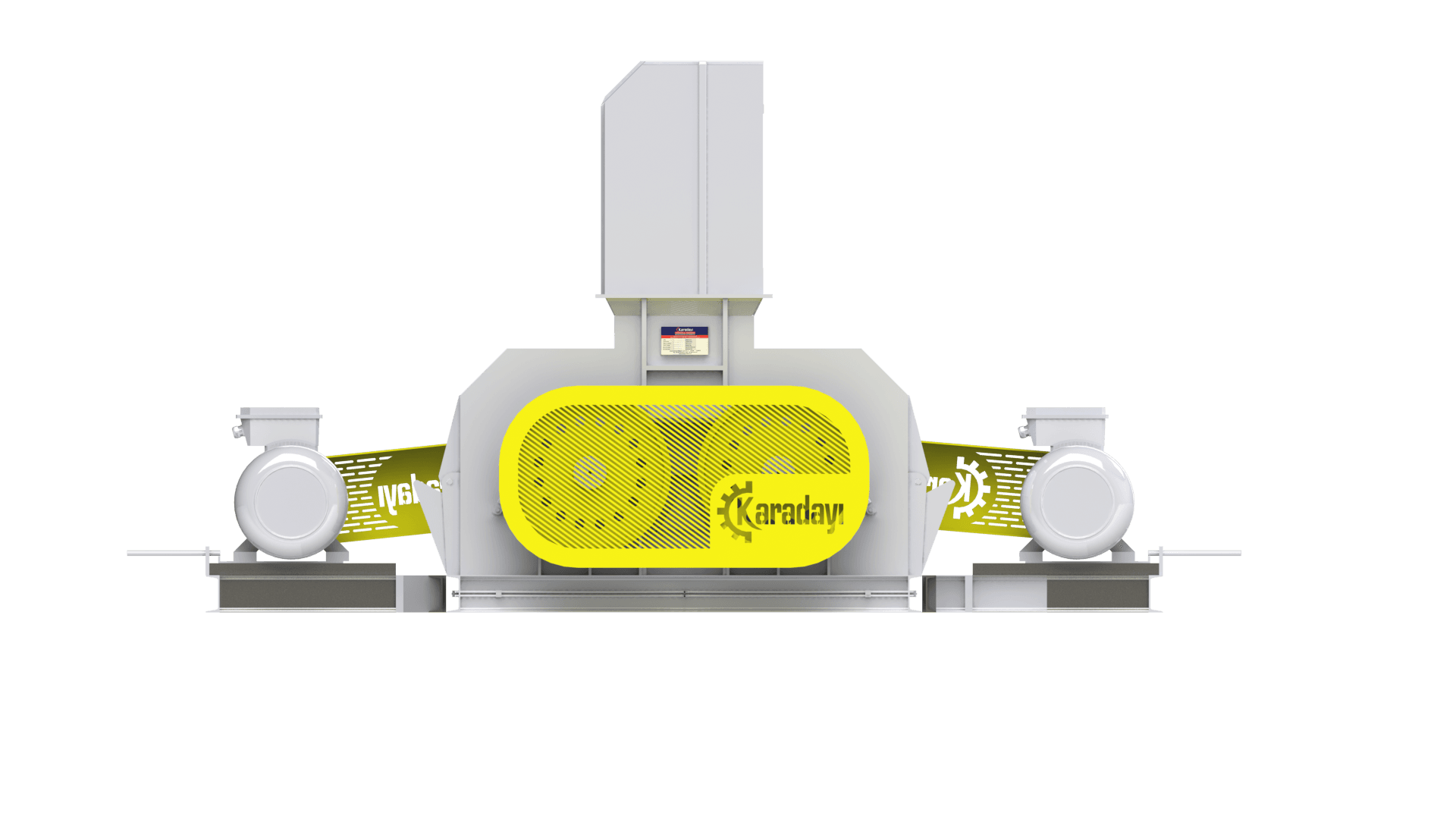

360° View
Loading 360° View...
Technical Specifications
5 to 35 tons/hour capacity
Two different rotation directions
The rotor is balanced at maximum operating speed.
Particle size up to 60 mm edge length
Bulk density from 0.2 to 0.8 kg/dm3
Electro-pneumatically controlled rotating baffle plate
Low noise level under rated load (90-93 dBA)
Sieves that can be easily changed within a minute thanks to the quick slide lock
Self-locking to prevent the covers from opening while the engine is running
Two bearing suspension

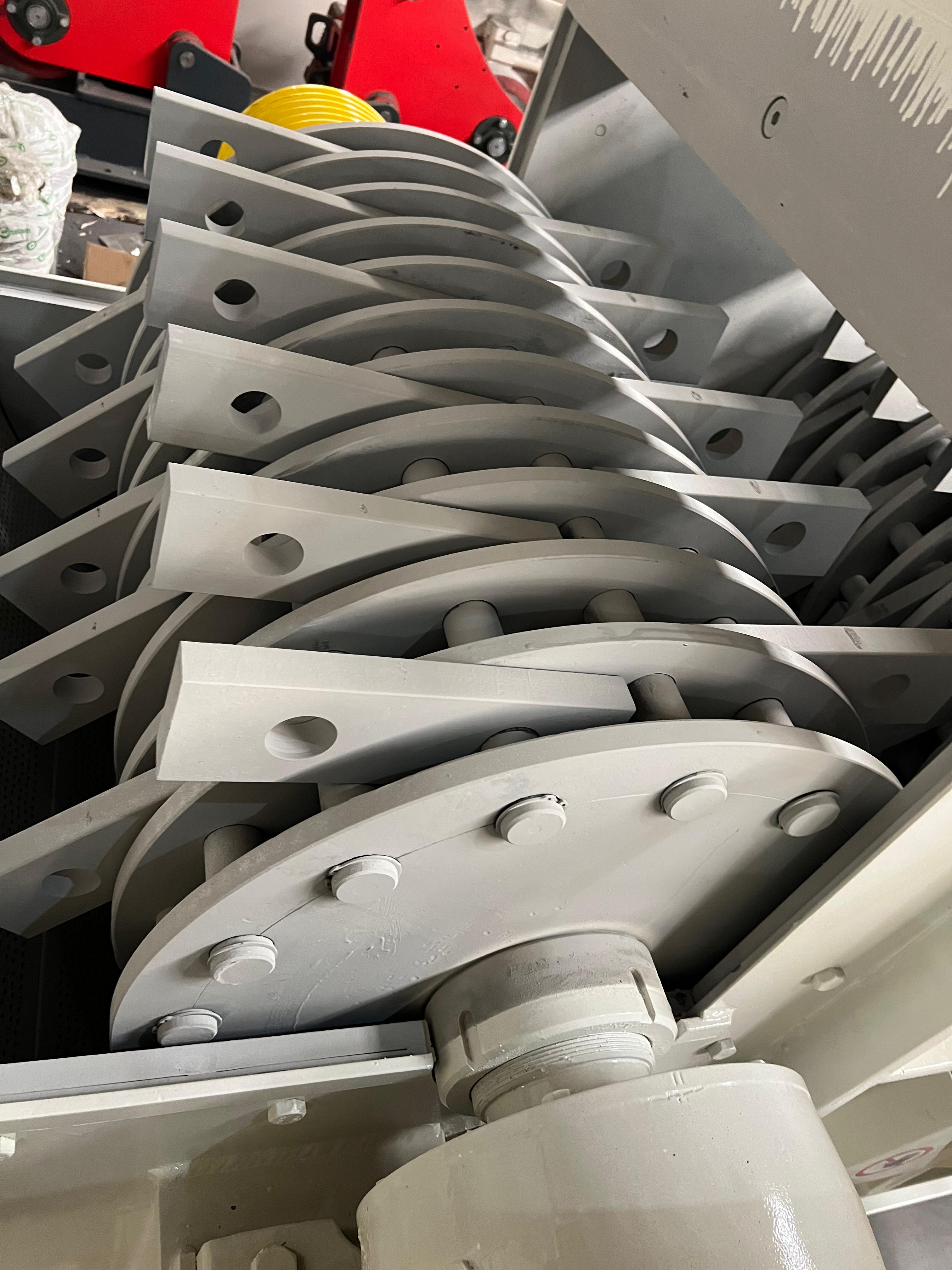

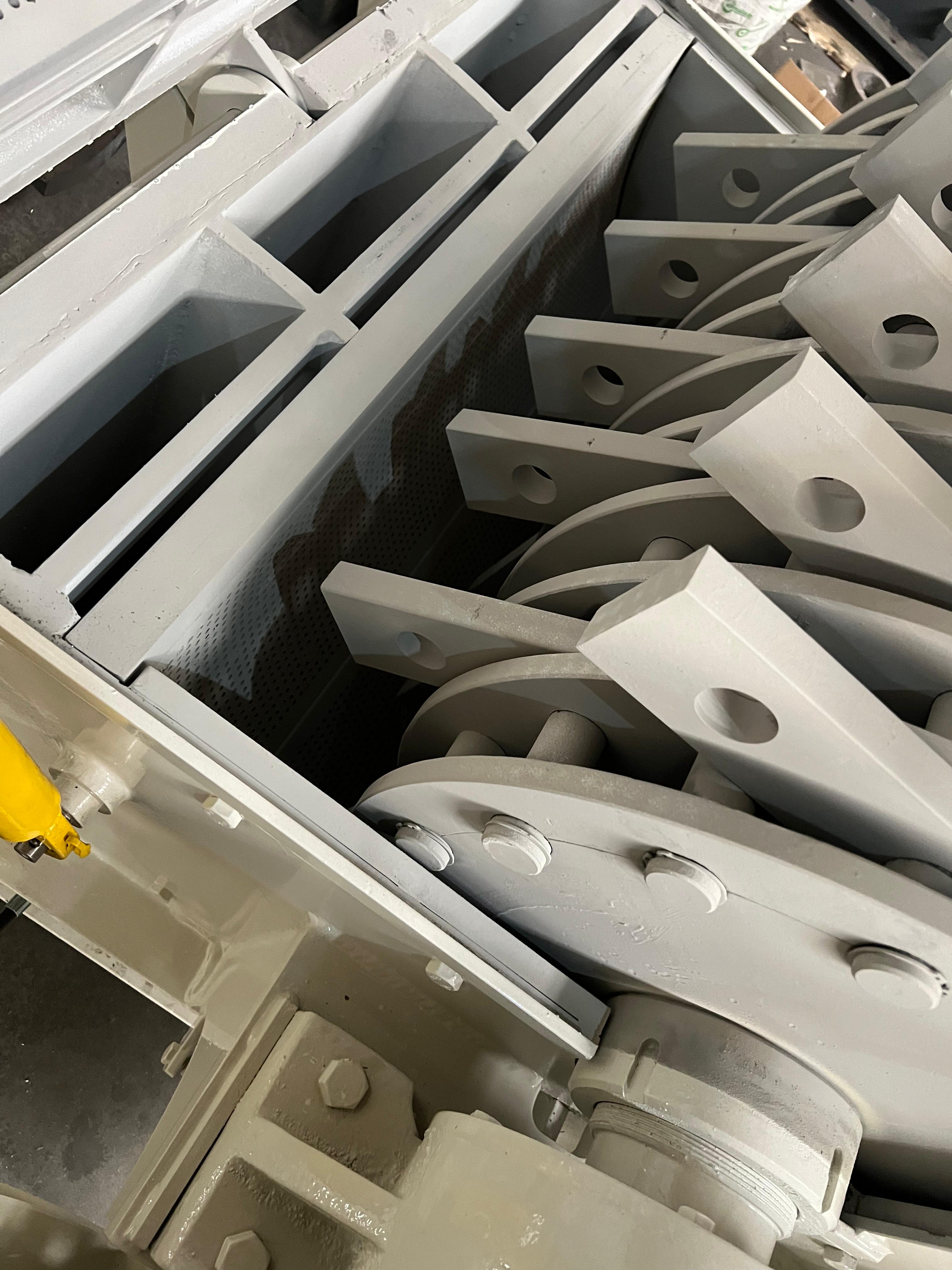

Hardened hammers and rods to extend life
| Type | Cylinder Dia./Length (mm) | Approx. Hardness Value (HRC) | Feeding Size (mm) | Final Size (mm) | Volumetric Yield (m³/h compact) | Operating Moisture Rate (% max.) | Yield Capacity (t/h wet) | Power Requirement (kW) |
|---|---|---|---|---|---|---|---|---|
| KK | 660/1000 | 48 - 50 | 400x400x400 | 0.5 - 3 | 30 - 35 | 10 - 12 | 50 - 60 | 2×110 |
| KK | 750/1000 | 48 - 50 | 400x450x400 | 0.5 - 3 | 35 - 45 | 10 - 12 | 60 - 75 | 2×132 |
| KK | 1000 / 1000 | 48 - 50 | 450x450x450 | 0.5 - 3 | 45 - 55 | 10 - 12 | 80 - 90 | 2x160 |
| KK | 1000 / 1500 | 48 - 50 | 500x500x500 | 0.5 - 3 | 60 - 80 | 10 - 12 | 100 - 125 | 2x200 |
