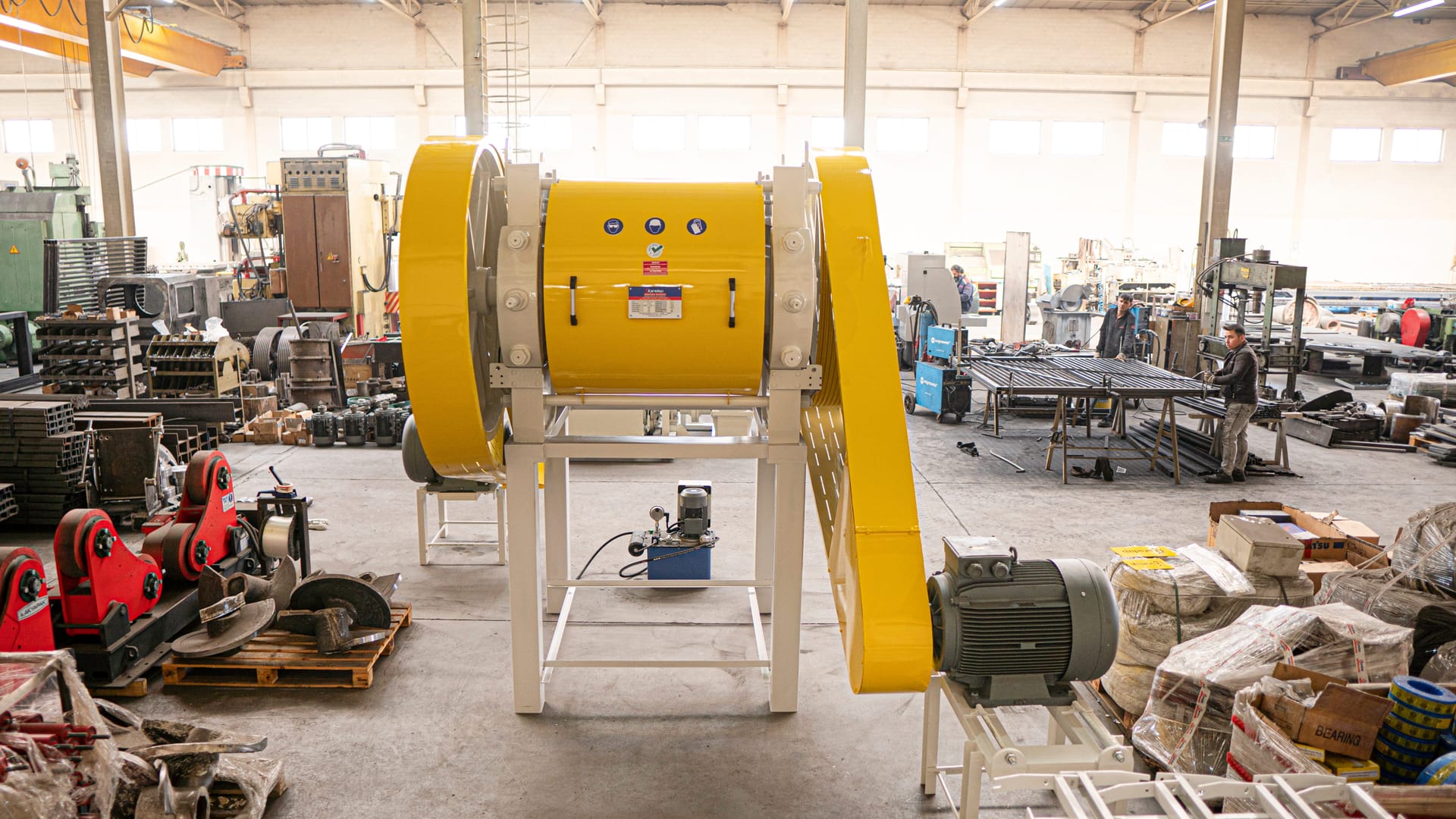

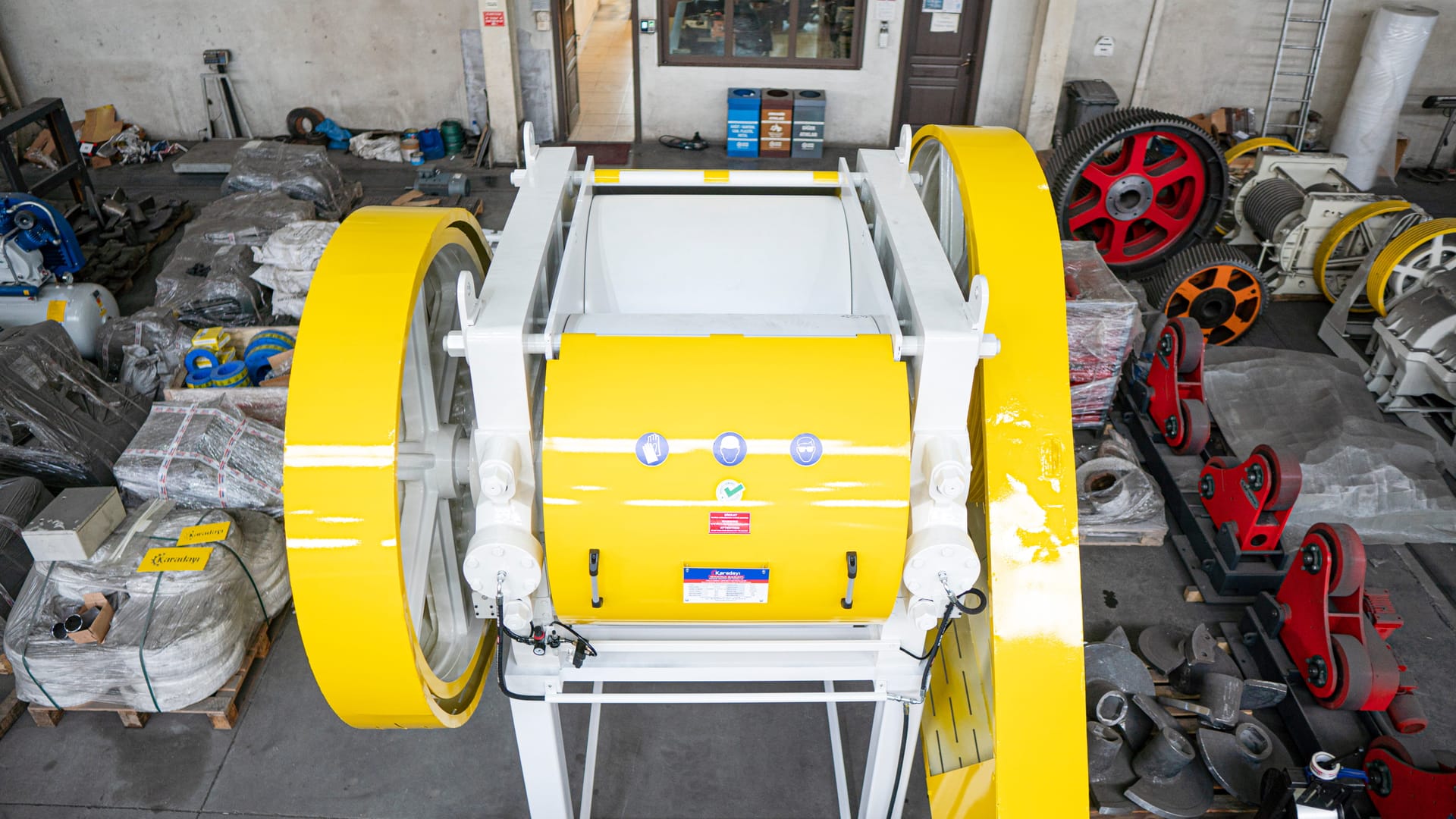

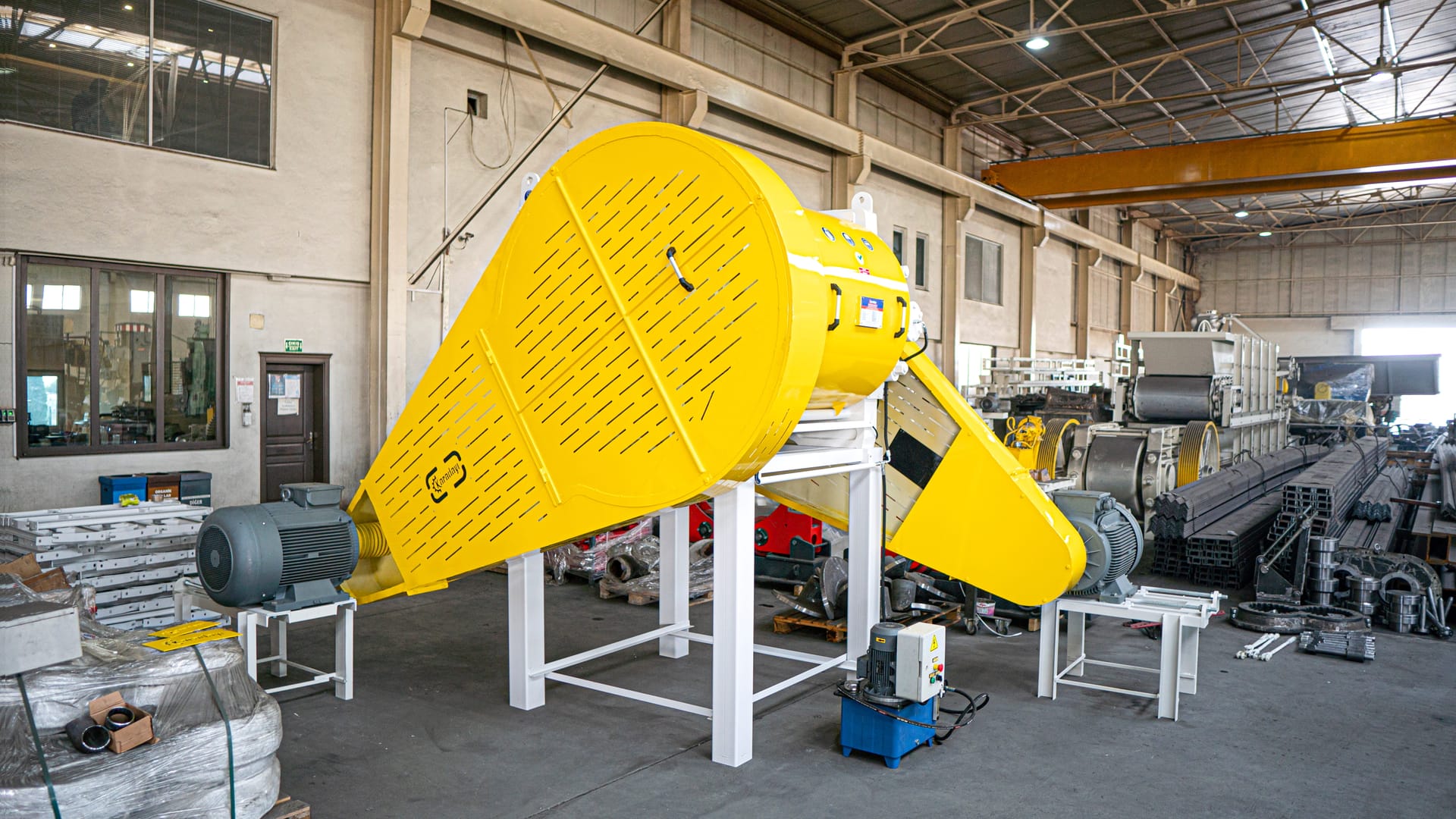

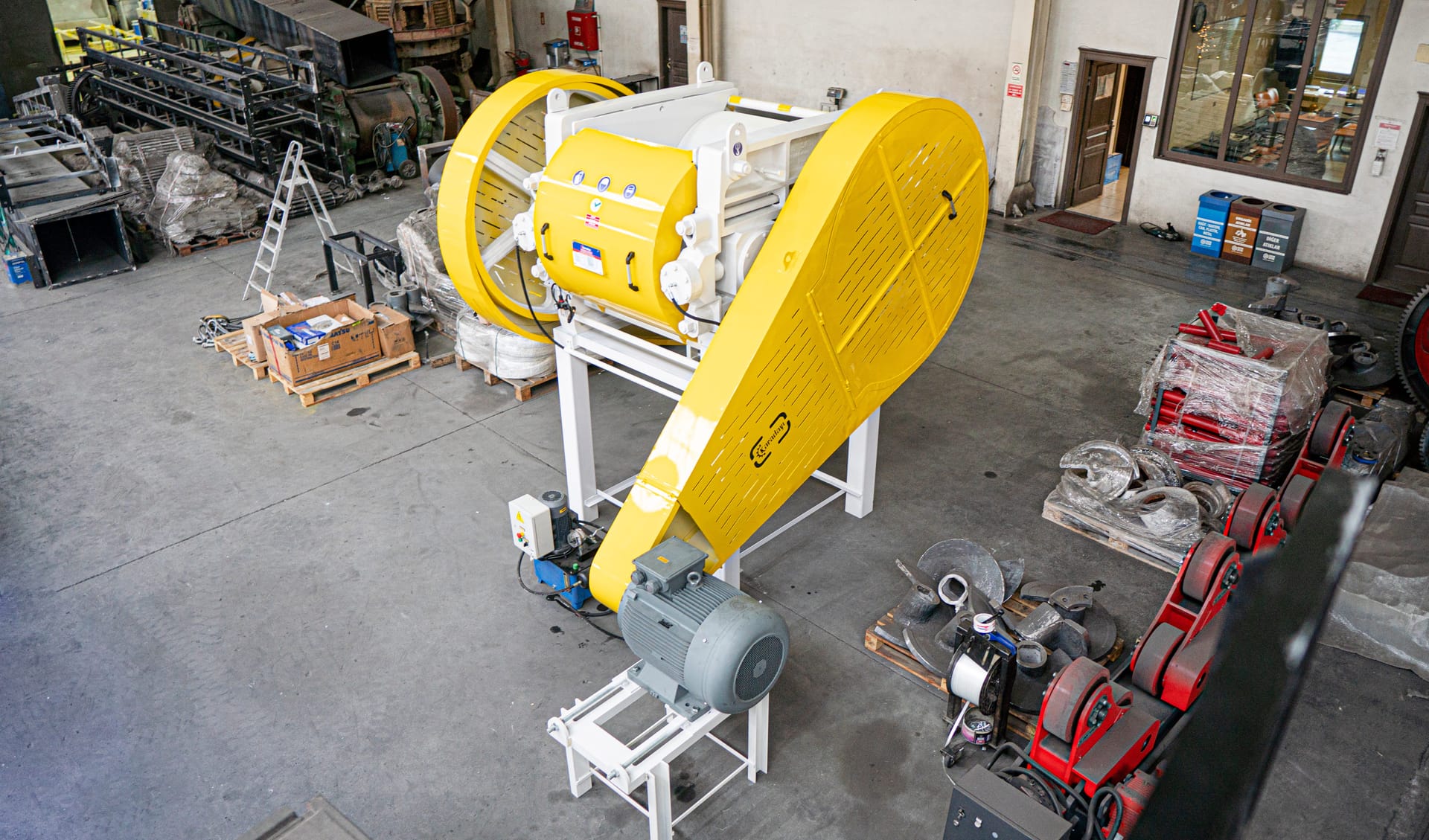

Fine Roller Mill
FMV/FHV/FXMV/FXHV - MAGNUM
The Fine Roller Mill is a critical equipment for fine grinding raw materials in the clay preparation process. With its high-pressure roller system, it refines material to micron level, ensuring superior surface quality in brick and tile production.
The MAGNUM series offers high capacity and durability at industrial scale.
Category
Roller Mill
Quality Guarantee
Certified production

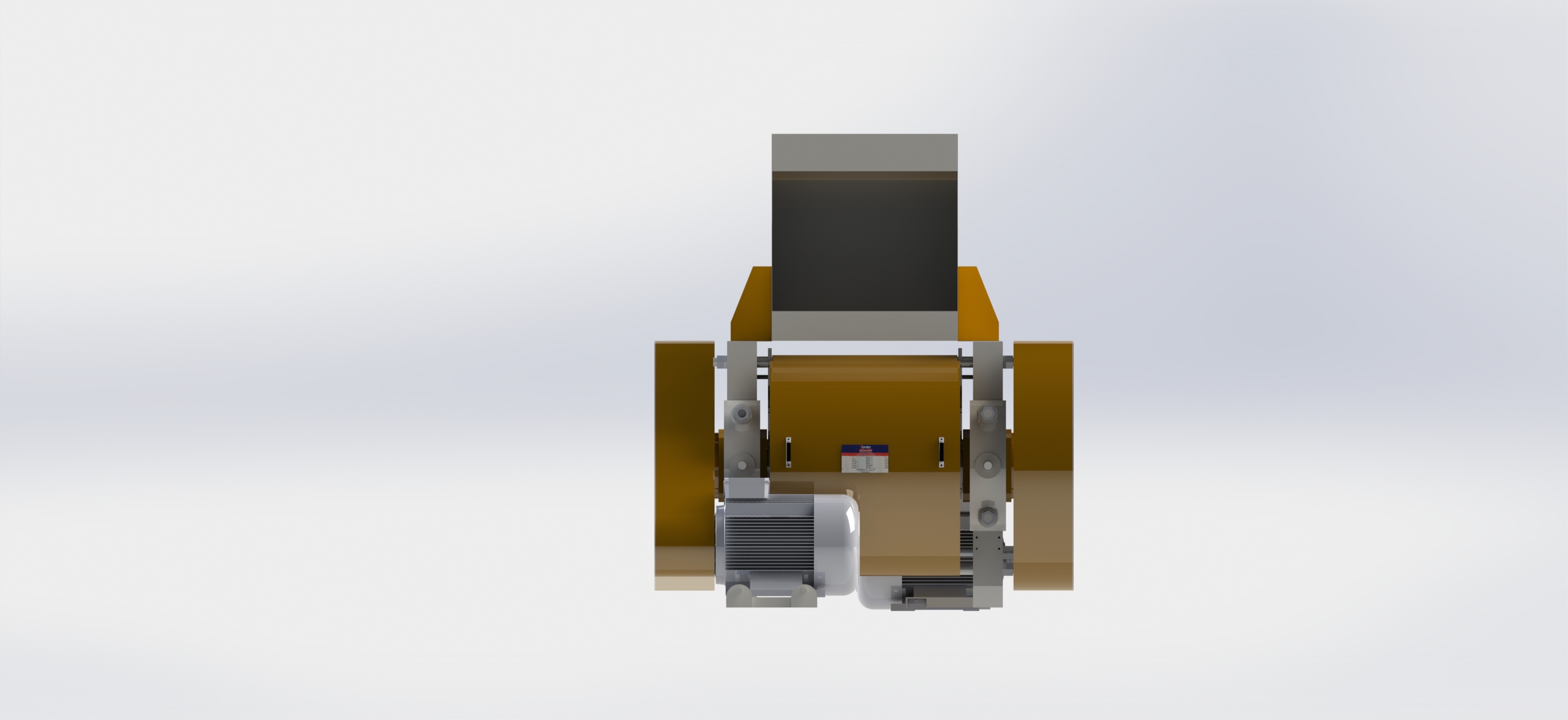

360° Interactive View
Available
Technical Specifications
Detailed table
360° View
0%
Loading 360° View...
Technical Specifications
| Type | Operation Type | Chassis Type | Cylinder Dia./Width (mm) | Ball Thickness * | Ball Hardness (HRC) ** | Max. Cylinder Rotation Speed (rpm) | Motor Power (kW) |
|---|---|---|---|---|---|---|---|
| FHV 60 | Hydraulic | Standard | 1000/600 | 100 | 44-48 | 225 / 240 | 2 x 75 |
| FMV 60 | Mechanical | Standard | 1000/600 | 100 | 44-48 | 225 / 240 | 2 x 75 |
| FHV 80 | Hydraulic | Standard | 1000/800 | 100 | 44-48 | 225 / 240 | 2x90 |
| FMV 80 | Mechanical | Standard | 1000/800 | 100 | 44-48 | 225 / 240 | 2x90 |
| FHV 100 | Hydraulic | Standard | 1000 / 1000 | 100 | 44-48 | 225 / 240 | 2×110 |
| FMV 100 | Mechanical | Standard | 1000 / 1000 | 100 | 44-48 | 225 / 240 | 2×110 |
| FHV 120 | Hydraulic | Standard | 1200/1000 | 100 | 44-48 | 225 / 240 | 2×132 |
| FMV 120 | Mechanical | Standard | 1200/1000 | 100 | 44-48 | 225 / 240 | 2×132 |
| FXMV | Mechanical | reinforced | 1000 / 1000 | 120 | 44-48 | 225 / 240 | 2×110 |
| FXMV | Mechanical | reinforced | 1200/1000 | 140 | 44-48 | 225 / 240 | 2×132 |
| FXHV | Hydraulic | reinforced | 1000 / 1000 | 120 | 44-48 | 225 / 240 | 2×110 |
| FXHV | Hydraulic | reinforced | 1200/1000 | 140 | 44-48 | 225 / 240 | 2×132 |
products.technicalNotes
*İsteğe bağlı olarak 120 mm ve 140 mm kalınlığında toplar üretilebilmektedir.
** İsteğe bağlı olarak aseküler top dökümü yapılabilmektedir. Aseküler topların sertlik değeri 52–56 HRC aralığındadır.
