Conveyor Belt
KRD
Conveyor Belt systems ensure the continuous and controlled transfer of raw materials between machines in the production line. With different width and length options, they have a modular structure that adapts to any facility configuration.
Durable belt material and powerful drive system enable long-term uninterrupted operation.
Category
Transport | Storage
Quality Guarantee
Certified production

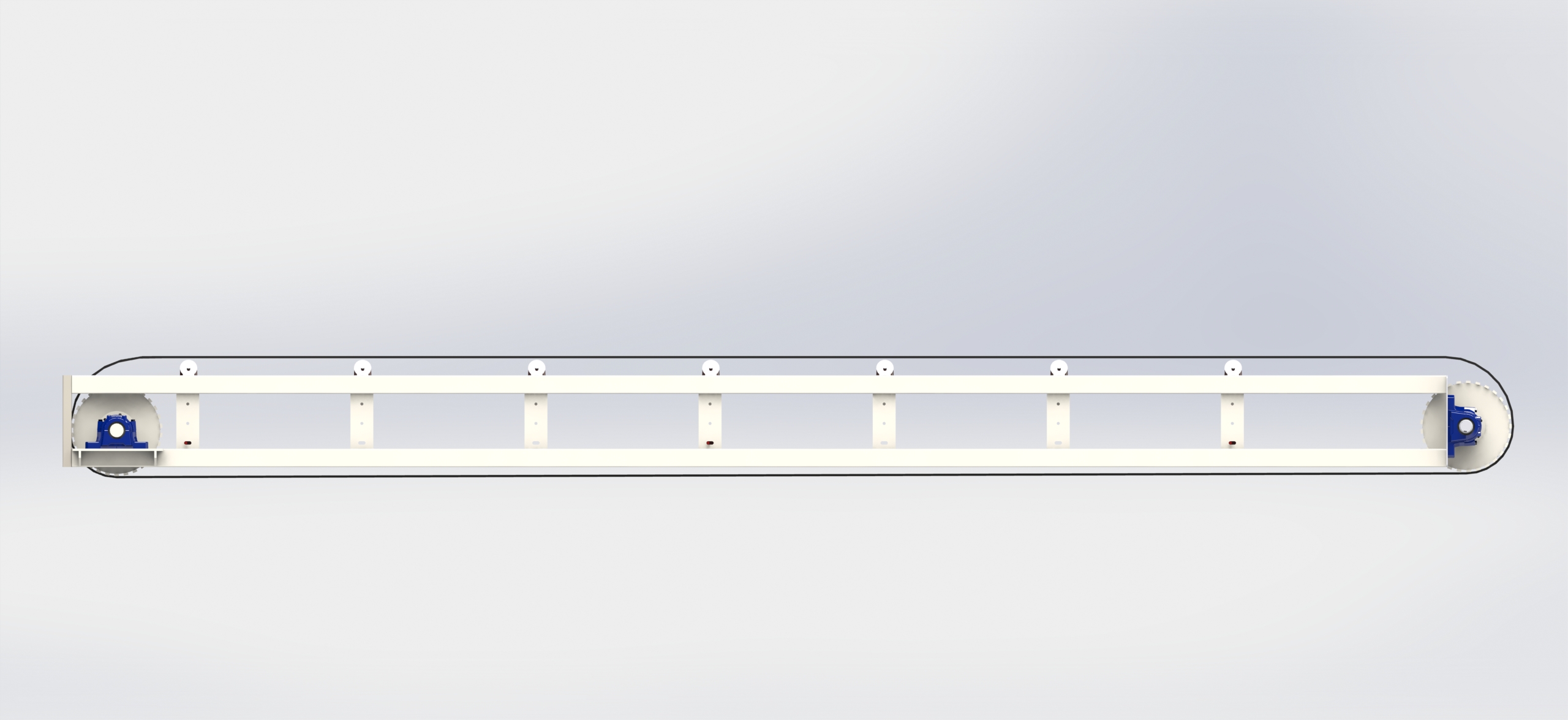

360° Interactive View
Available
Technical Specifications
Detailed table
360° View
0%
Loading 360° View...
Technical Specifications
| Type | Belt Width (mm) | Length (m) | Capacity (t/h) | Motor Power (kW) |
|---|---|---|---|---|
| KRD-TB 400 | 400 | 5-50 | 15-30 | 2.2-7.5 |
| KRD-TB 500 | 500 | 5-80 | 25-50 | 3-11 |
| KRD-TB 650 | 650 | 5-100 | 40-80 | 4-15 |
| KRD-TB 800 | 800 | 5-120 | 60-120 | 5.5-22 |
| KRD-TB 1000 | 1000 | 5-150 | 80-180 | 7.5-30 |
Technical Support
24/7 technical support and spare parts service
Global Service
Installation and training support in 10+ countries
Quality Guarantee
Production standards
