Combined De-Airing Extrusion Units
FX/F DELTA

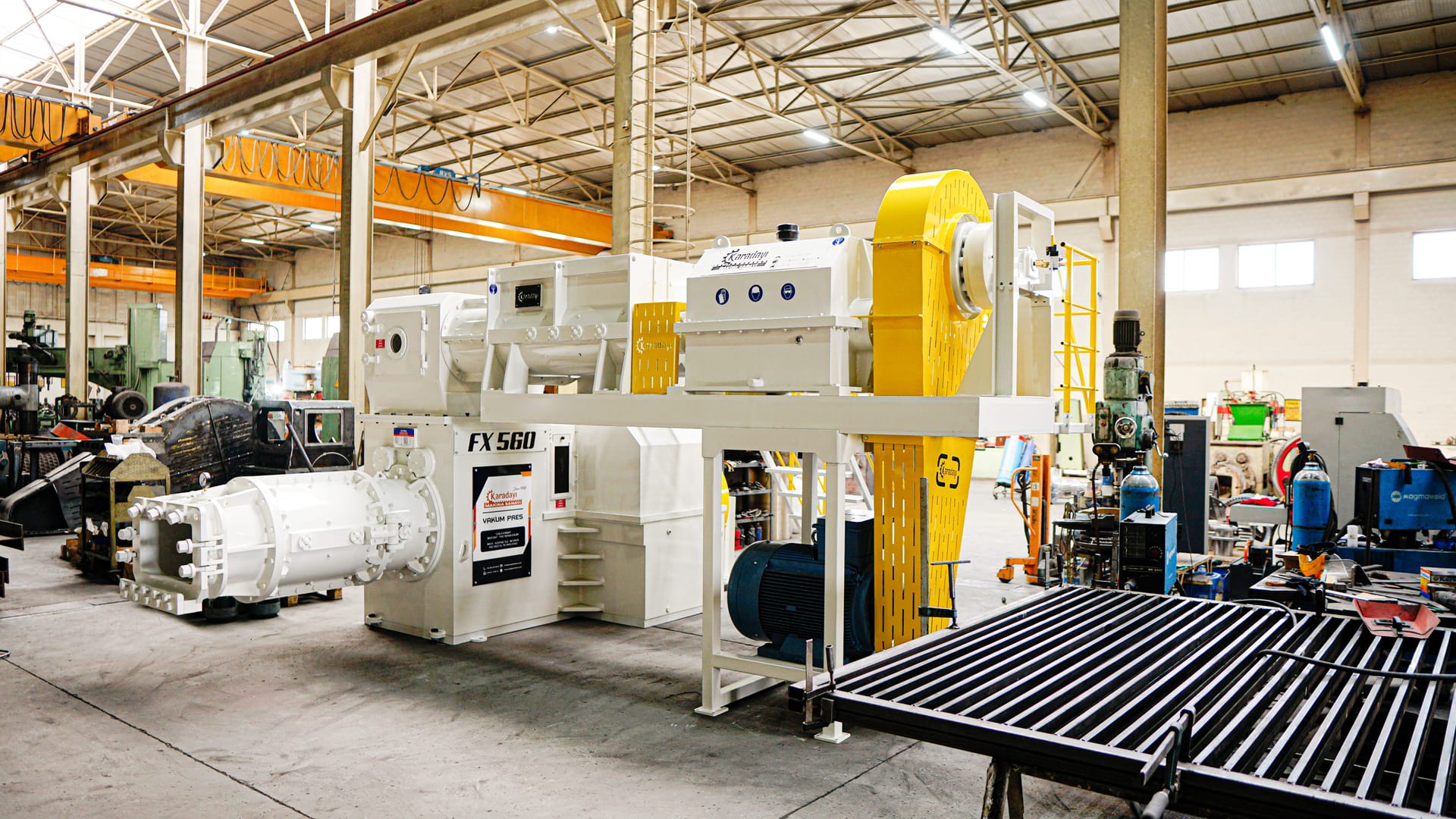

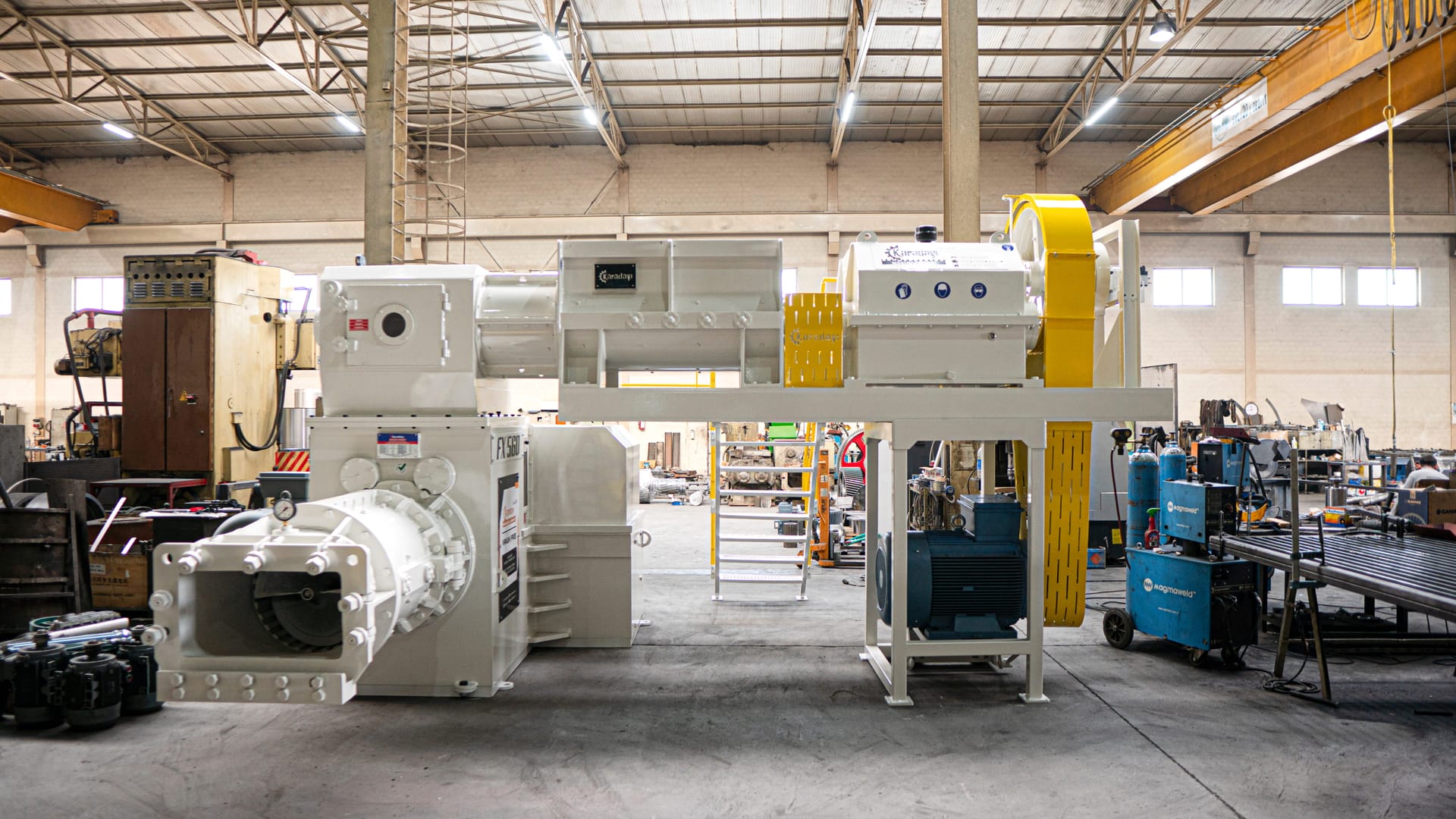

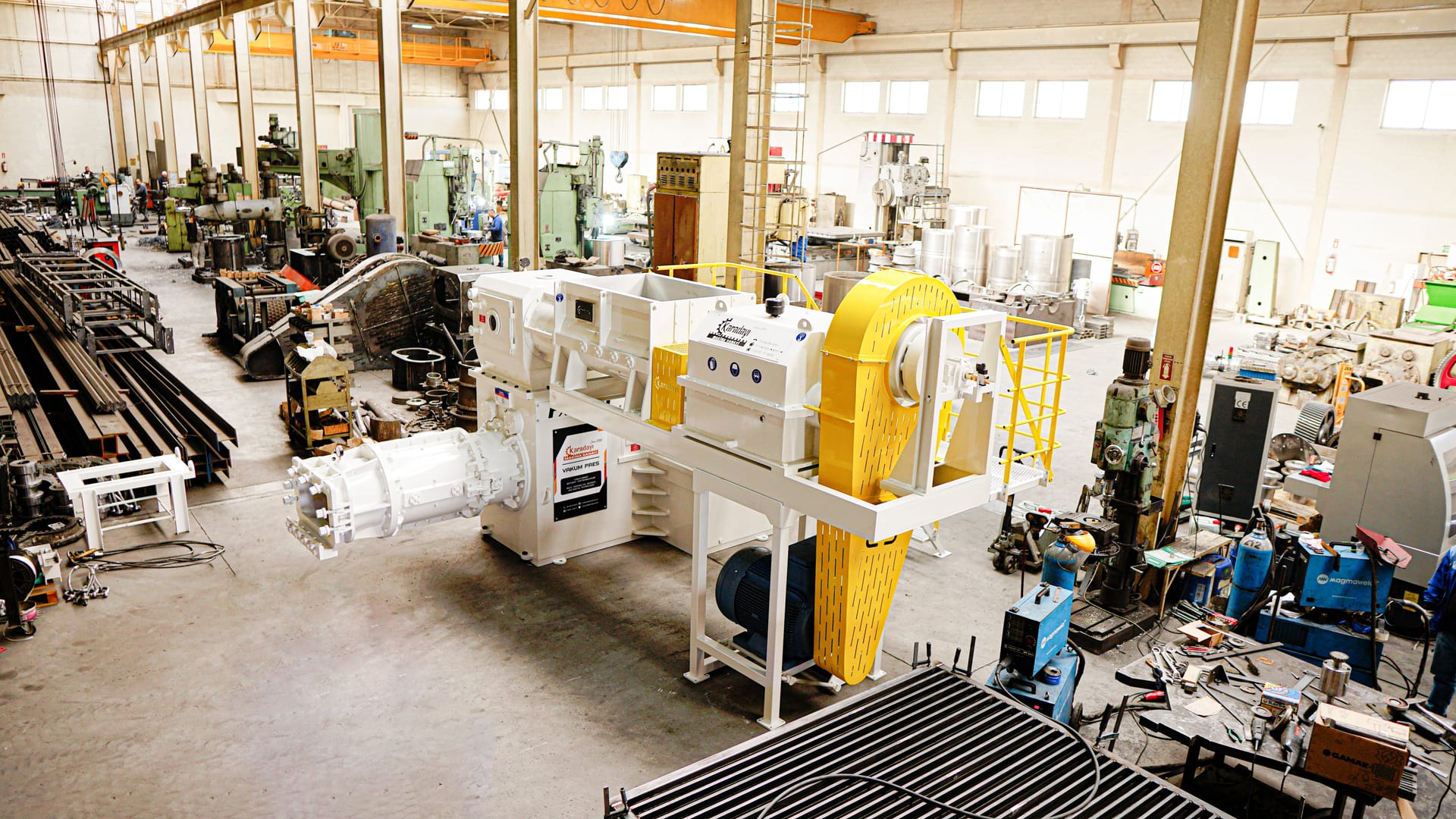

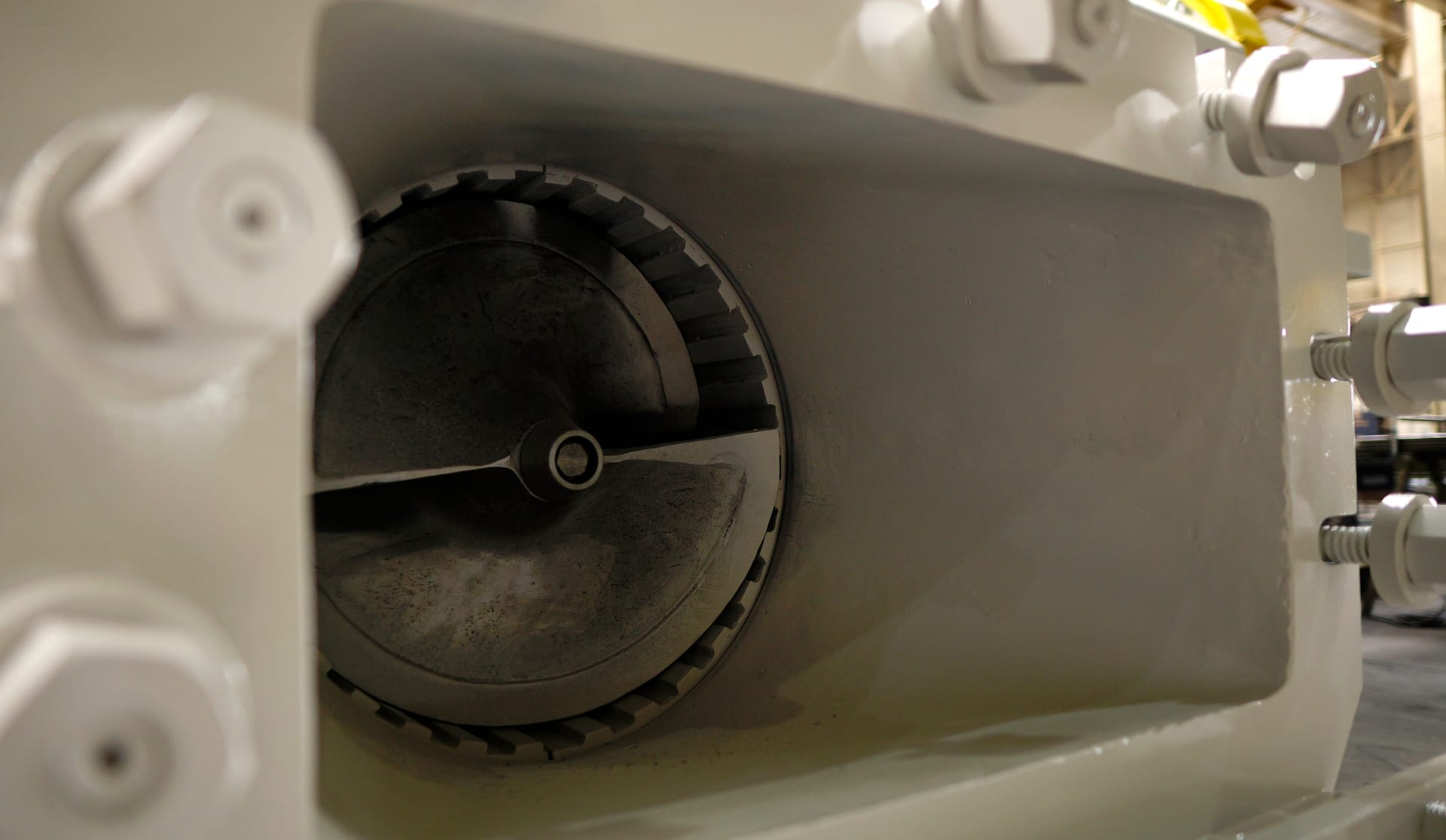

The Vacuum Press is the main production equipment that shapes bricks, tiles and ceramic products by compressing clay body under vacuum and passing it through a die. With its high pressure capacity and vacuum system, it produces products of superior density, smooth surface and mechanical durability.
Wide barrel diameter options adapt to different product sizes.
Category
Shaping | Extrusion
Quality Guarantee
Certified production

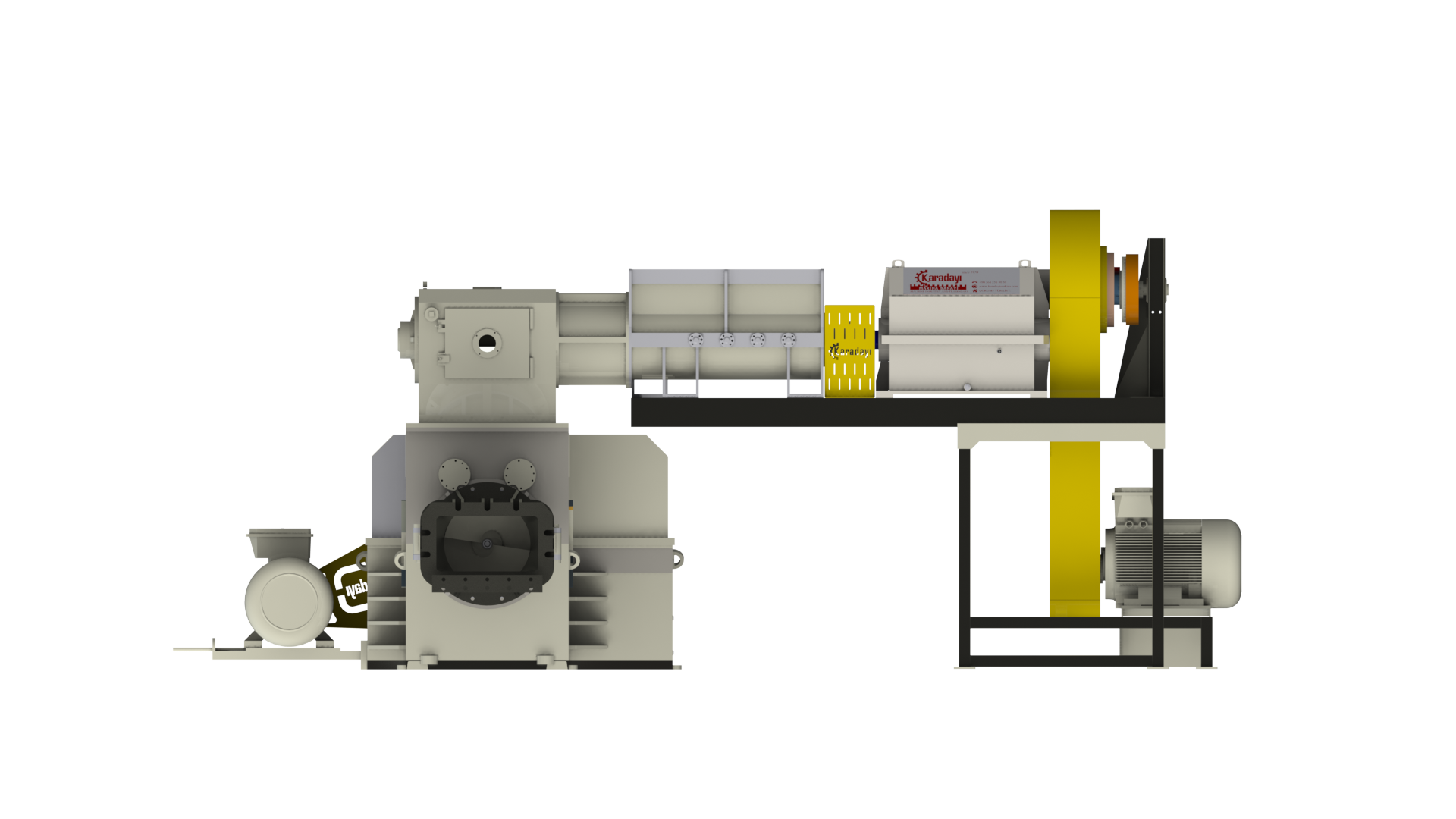

360° Interactive View
Available
Technical Specifications
Detailed table
360° View
0%
Loading 360° View...
Technical Specifications
| Type | Auger Diameter (mm) | Max. Extrusion Pressure (bar) | Volumetric Yield (m³/h compact) | Capacity (t/h wet) | Upper Machine Motor Power (kW) | Lower Machine Motor Power (kW) | Trough Width | Trough Length | Upper Machine Anchor Dimensions | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|
| F 20F/20 | 200 | 40 | 0.15-1.4 | 0.24-2.2 | 11 | 22 | 200 | 1020 | 200 | 2.000 |
| F 30F/30 | 300 | 40 | 1.5-6 | 3-10 | 15 | 45 | 300 | 1300 | 300 | 5.475 |
| FX 35FX/30 | 300 | 40 | 1.5-8 | 3-12 | 22 | 45 | 300 | 1300 | 300 | 6.100 |
| FX 40F/40 | 400 | 30 | 3-17 | 5-30 | 37 | 75 | 760 | 550 + 1150 | 400 | 8.000 |
| F 45F/45 | 450 | 30 | 9-21 | 15-34 | 55 | 110 | 760 | 550 + 1150 | 400 | 12.000 |
| FX 50FX/45 | 450 | 35 | 12-25 | 19-40 | 75 | 160 | 760 | 500 + 1350 | 400 | 12.500 |
| F 50F/50 | 500 | 30 | 13-27 | 20-44 | 75 | 160 | 760 | 550 + 1150 | 400 | 13.500 |
| F 55FX/50 | 500 | 35 | 14-30 | 22-48 | 90 | 200 | 760 | 550 + 1150 | 400 | 14.700 |
| FX 60FX/56 | 560 | 30 | 19-39 | 30-62 | 90 | 200 | 950 | 500 + 1350 | 500 | 20.700 |
| F 60F/60 | 600 | 30 | 20-42 | 32-68 | 110 | 250 | 950 | 500 + 1350 | 500 | 22.000 |
| FX 70 FX/68 | 680 | 27 | 20-55 | 50-88 | 110 | 250 | 950 | 600 + 1600 | 500 | 27.400 |
| F 70F/70 | 700 | 25 | 22-60 | 50-96 | 110 | 315 | 950 | 600 + 1600 | 500 | 29.400 |
